About this item

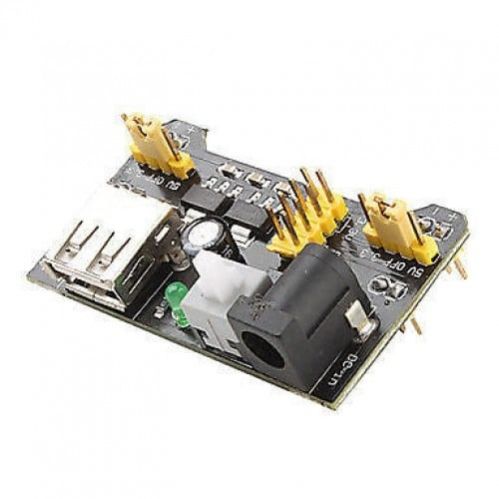

This is a 3.3V/5V MB102 Breadboard Power Supply Module which provides a dual 5 V and 3.3 V power rails and has a multi-purpose female USB socket. The 3.3V/5V MB102 Breadboard Power Supply Module securely fits in a standard 400 or 800 tie points breadboard it also features reverse polarity protection, the module can take 6.5V to 12V input and can produce 3.3V and +5V. The module can also output 5V on USB connector or input through the USB connector. It?s a must-have product for experimenters those have to test/prototype electronic circuits on the breadboard. Specification Maximum Output Current(mA) <700 Length (mm) 53 Width (mm) 32 Height (mm) 23 Weight (gm) 8 1. Breadboard power supply module, compatible with 5V, 3.3V. 2. Apply to MB102 breadboard 3. Input voltage: 6.5-12 V (DC) or USB power supply 4. Output voltage: 3.3V/5V can switch over 5. Maximum output current: <700 ma 6. Fluctuation two road independent control can switch over to 0 V, 3.3 V, 5 V 7. On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
